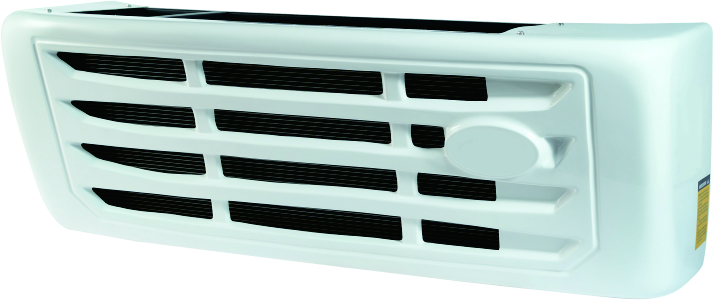

HT-880 Truck VAN Refrigeration Unit For 40m3 Box Volume

  • 1
  • 2
  • 3

Brand Name : Yinhuasheng/OEM

Model Number : HT-880

Certification : CE

Place of Origin : China

MOQ : 1SET

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1000 sets per month

Delivery Time : Negotiable

Packaging Details : Negotiable

Model : HT-880

Temperature Range : -25°C To +25°C

Cooling Capacity(0℃) : 7500W

Cooling Capacity(-18℃) : 4765W

Application Box Volume : ≤40 m3

Outside Temperature : 30°C To 50 °C

Compressor Brand : Guangyu

Compressor Mode : GY21

Compressor Displacement : 209 CC

Condenser : Parallel Flow Condenser

Evaporator : Inner grooved copper tube&aluminum Fin

Contact Now

HT-880 truck VAN refrigeration Unit for 40m3 box volume

Product Introduction:

1. Direct engine drive.

2. Driven by vehicle engine, this is designed for 40m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.

3. OEM customized service are avaliable.

4. Low operational cost and service cost.

5.Easily installation.

6.Suitable for long distance transportation.

Features:

► Eco-friendly refrigerant R404A (R134a system is also avalible).

Corrosion resistant and high strength FRP canning material.

Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.

► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.

► Strong reliable and stable compressor for R404a systems specially.

► Digital display control panel,minimal operation.

► HP and LP switch safety protection.

► Large cooling capacity, reliable performance.

Technical Parameters:

Unit Model HT-880
Applicable Temperature(℃) -25°C To +25°C
Box Volume (m³) ≤40m³

Cooling Capacity

(W)

0℃/+30℃ 7500 W
-18℃/+30℃ 4765 W
Compressor Model GY21/JS32
CC 209/328 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Number of Fans 3 PCS

Condenser

Material Parallel flow condenser
Number of Fans 3 PCS
Refrigerant R404a
Refrigerant Charge 3.3KG
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator 37 KG
Condenser 55 KG
Evaporator 1240*600*345
Condenser 1480*500*510
Drive Model Non-independent engine driven
